Elevator Cab LED Light Panel Fixture.
Our Custom Elume Elevator SlimCab Fixture
Our 1.1" thin, eLume LED Slimcab Elevator Light Panel Fixtures are enclosed in an aluminum framing with integral proprietary polycarbonate diffusion lens designed to output a perfectly uniform, bright, edge to edge white illumination evenly diffused across the surface of the panel that easily recesses into your elevator cab's drop ceiling.
Available in Warm White, Neutral White and Daylight White our SlimCab LED Panel Fixtures are custom manufactured specific to the dimensions that your elevator cab requires ensuring the most resilient and uniform output optimized for drop ceiling elevator cab lighting.

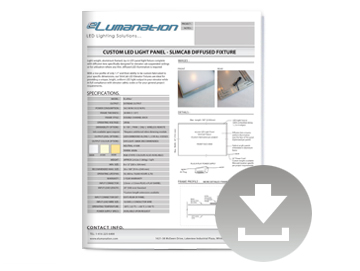

We encourage you to contact us to discuss your elevator's LED Light Panel Fixture requirements with one of our knowledgeable design associates.Download Slimcab Cut Sheet
Elevator SlimCab LED Fixture Attributes
Customizability
Each fixture is custom fabricated to your provided dimensions and optimized to meet specific light level requirements and with multiple kelvin temperature options to best suit each project's elevator cab's specific design requirements.
Illumination & Dimmability
With our standard extreme output level model or the ability to manufacture to your custom, output level specifications with various kelvins and dimming method options our Elevator SlimCab fixtures are optimized to the ideal light level required for your elevator application.
Emergency Back Up Systems
Operating at 24Vdc our Elume Elevator SlimCab Fixtures are compatible with majority of existing battery back up systems or alternatively utilize Elumanation's emergency battery back up system for a complete solution.
Design Assistance
From concept to implementation, architects to end users, our knowledgable design consultants and technichians offer assistance throughout the project to meet your functional requirements and achieve your aesthetic lighting objective.
Custom Elevator Drop Ceiling SlimCab LED Light Fixture - ELsf30
Elume SlimCab LED Light Fixture - Light Output Colour Options
Elume SlimCab LED Light Panel Fixture - LED Embedded Side's Options
LEDs Embedded Along 1, 2 or 4 Edges
To ensure the ideal output specifications for your project each Elevator SlimCab LED Light Fixture is custom fabricated with the option of embedding LEDs along 1 edge, 2 opposing edges or along all 4 edges.
Uniform Diffused Illumination
Internally each SlimCab's LED Light Fixture's light distribution is optimized by Elumanation's proprietary algorithm to ensure maximum uniformity across each SlimCab's diffused surface.
LEDs embedded along ONE edge.
To eliminate any slight drop off associated with larger fixtures and LEDs embedded along ONE edge we typically only recommend SlimCab Fixtures with LEDs embedded along ONE edge for panels 15 inches (381 mm) or less in width to ensure uniform illumination.
PLEASE NOTE: LEDs shown in the image are for demonstration purposes only and are not visible on the final product.

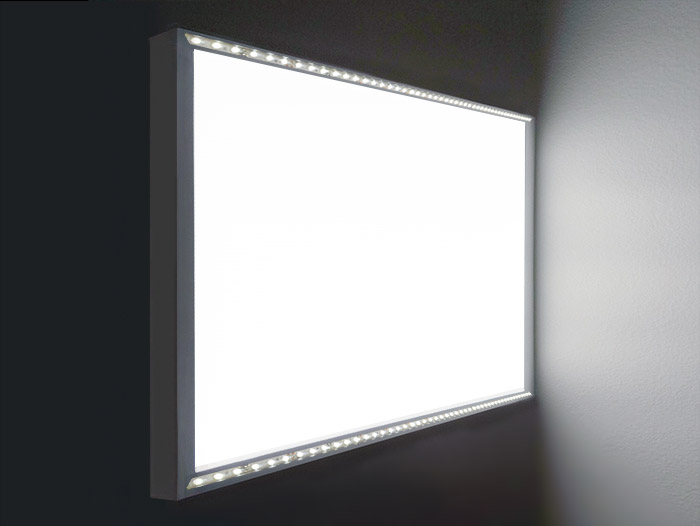

LEDs embedded along TWO edges.
For larger SlimCab fixture's, LEDs embedded along TWO opposing edges coupled with Elumanation's proprietary light guide distribution grid optimization algorithm specific to each SlimCab fixture and our proprietary diffusion lens ensures maximum uniformity with superior illumination levels.
PLEASE NOTE: LEDs shown in the image are for demonstration purposes only and are not visible on the final product.

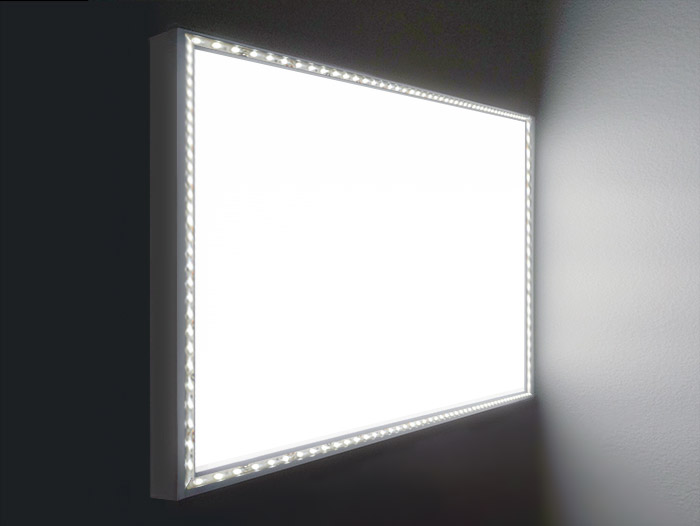

LEDs embedded along ALL FOUR edges.
For larger SlimCab Fixtures square or near square in shape, LEDs embedded along ALL FOUR edges coupled with our proprietary light guide distribution grid optimization algorithm specific to each SlimCab fixture and our proprietary diffusion lens ensures maximum uniformity with superior illumination levels.
PLEASE NOTE: LEDs shown in the image are for demonstration purposes only and are not visible on the final product.
Elevator SlimCab LED Fixture - Specifications & Downloads
| SPECIFICATION: | MODEL# ELsf30/(MH or E) / (DW,NW or WW) |
|---|---|
| Output Level Options: Max-High Output [MH]: Extreme Output [E] : |
17 W/M [5.18 W/Ft] 25 W/M [7.62 W/Ft] |
| Frame Thickness: | 28 mm [1.125"] |

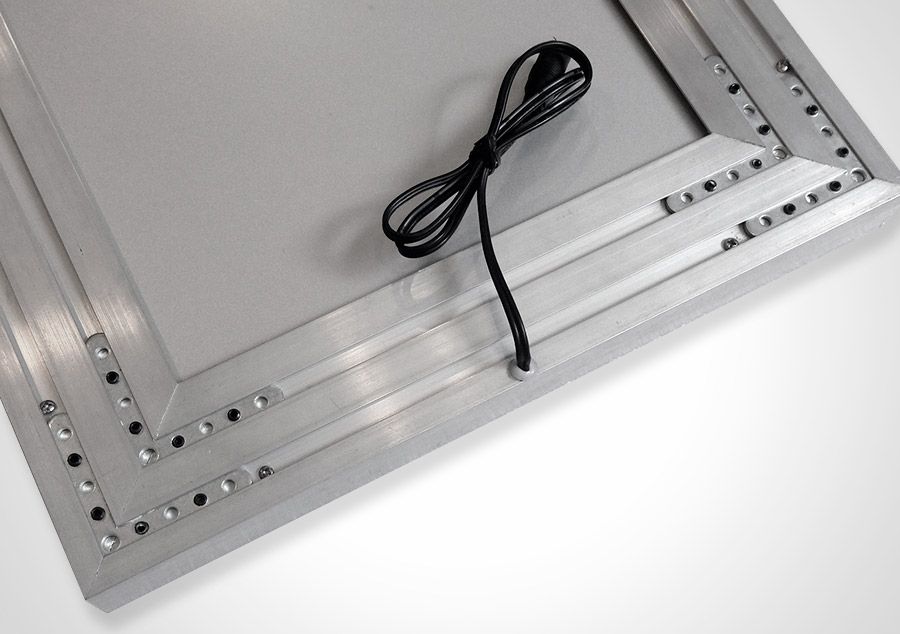

| Frame Style : | Satin Anodized Aluminum - Double Channel Back |
Embedded LED Options: |
- Along 1 Edge ( <15" Width ) - 2 Opposing Edges ( Typically Long Edges ) - Entire perimeter ( All 4 Edges ) |
| Colour Output Options: Daylight White (DW) : Neutral White (NW) : Warm White (WW) : |
5800K 4100K (Recommended) 3000K |
| Minimum Custom Size : | Contact us for consultation |
| Maximum Custom Size : | 36 x 100" [914 x 2540 mm] |
| Weight : | Approx 2.4 Lbs [1.8kg] / SqFt |
| Operating Voltage : | 24Vdc |
| Dimmability Options: | 0~10V | PWM | DALI | Wireless Remote *Additional Dimming Module Required |
| Warranty : | 3 Year Warranty |
| Safety Certification : | UL Listed |
