Extreme Output Elume LED Light Tape.
Our Elume LED Light Tape
Our extreme output, LED Light Tape outputs a perfectly even, bright, continuous light output along the 10M [32.8Ft] length for a seamless illumination.
Cuttable in any 2" increment we offer custom manufactured plug and play lengths specific or the full 10M [32.8Ft] reel for an onsite hardwired installation depending on your project's requirements.
With various aluminum mounting channel options, three standard colour options or RGB and the ability to manufacture to your custom output level specifications our Elume LED Light Tape surpasses the performance and customizability of industry alternatives.

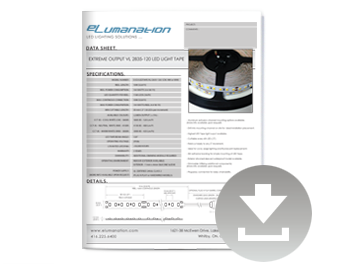

We invite you to contact us to discuss your project's Elume LED Light Tape requirements with one of our knowledgeable design associates.Download LED Tape Cut Sheet
Attributes
Customizability
Available in full continuous 10M [32.8Ft] reels onsite customization or fabricated to specific plug and play lengths as well as specific light level and kelvin temperature options to best suit each project's requirements.
Illumination & Dimmability
With our standard extreme output level model or the ability to manufacture to your custom, output level specifications with various colour and dimming method options our LED Light Tape is optimized to the ideal light level required for your application.
Aluminum Mounting Channels
Multiple aluminum mounting channel options with optional lenses not only add additional customization and aesthetic appeal yet act as thermal management systems diverting heat from the LEDs thus further ensuring the longevity of the LED Light Tape's lifespan.
Design Assistance
From concept to implementation, architects to end users, our knowledgable design consultants and technichians offer assistance throughout the project to meet your functional requirements and achieve your aesthetic lighting objective.
Specifications & Downloads
| SPECIFICATION: | MODEL# E-EO/LEDTAPE/VL/2835/ (CW,NW or WW) |
|---|---|
| Reel Length: | 10M [32.8 Ft] |
| Reel Power Consumption: | 144 Watts [4.4W/Ft] |
| LED Quantity Per Reel: | 1180 x 2835 LEDs [36/Ft] |
| Max Continous Length: | 10M [32.8 Ft] |
| Available Colour Outputs: Cool White (CW) 5800K: Neutral White (NW) 4100K: Warm White (WW) 3000K: |
Lumen Output: (IES Files Available) 520 Lm/Ft 480 Lm/Ft 435 Lm/Ft |
| Min Cuttable Length: | 50 mm [2"] (6 LEDs Per Increment) |
| Operating Voltage : | 24Vdc |
| Dimmability : | Yes (Additional Dimming Module Required) |
| Warranty : | 3 Years |

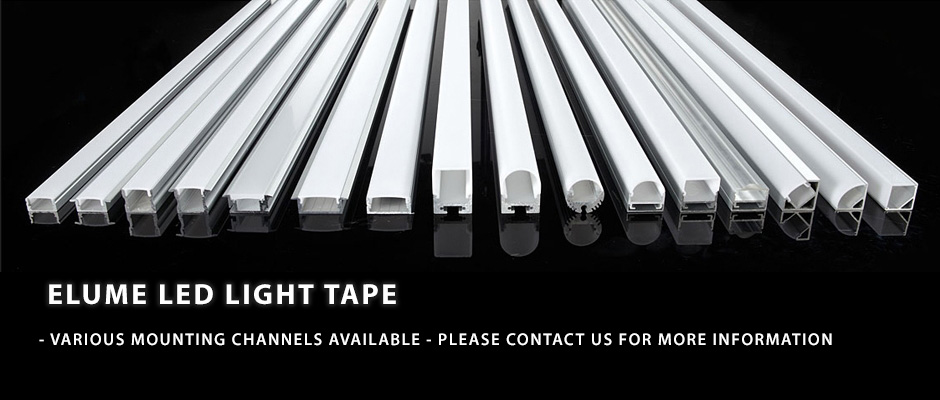

Various Aluminum Channel Options
