Elume Drop-in Troffer LED Panel Light.
Our Elume LED SlimFixture Lay-in Troffer
Our thin, eLume LED SlimFixtures are designed to output a perfectly even, bright, edge to edge, diffused illumination across the surface of the panel to effectively and efficiently replace traditional drop-in or suspended fluorescent troffer fixtures designed for both new construction and retrofit applications.
Please Contact Us for any additional information, project assistance or pricing in regards to our eLume SlimFixture line and we will be glad to accommodate. Please note that in sufficient quantites we are able to custom fabricate our SlimFixture's to specific dimensional and light output requirements.
Alternatively as opposed to our fluorescent replacement lay-in SlimFixtures we invite you to evalute our Custom LED Light Panel portfolio which may have a better option more suited to your application's requirements.
Download Specification Guide
Attributes
Versatility
2x2, 1x4 and 2x4 Ft models all with various colour and illumination light output level options to enusure the best suited models are available for your general area illumination, suspended or recessed-ceiling lighting application. In addition we invite you to inquire about further customization of the dimensional properties to best suit your custom application.
Aesthetic Design
Ultra thin, profile utlizing our edge-lit Elume LED Light Panel technology as a light engine, coupled with a superior diffusion lens and recessed framing allows for a perfectly even illumination with no visable light source for a seamless visual apperance optimized for commonly used T-bar ceiling grids or as eye-catching suspended fixtures.
Illumination & Dimmability
With multiple fully dimmable output level options and the ability to embedd LEDs along 1, 2, or all 4 edges of the fixture, our eLume SlimFixture's are fabricated to the ideal light level required for your general area illumination application.
Design Assistance
From concept to implementation, architects to end users, our knowledgable design consultants and technichians offer assistance throughout the project to meet your functional requirements and achieve your aesthetic lighting objective.
Elume SlimFixtures | Drop-in Ceiling Light Fixture

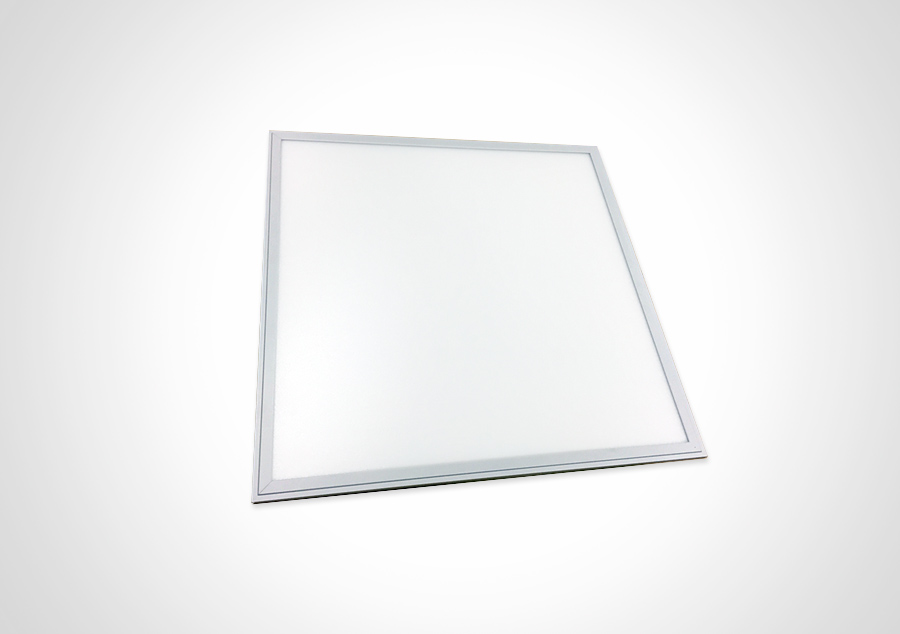

Elume 2x2Ft SlimFixture
| MODEL: | ELSF/2x2/... |
|---|---|
| Light Level: | High Output [HO] Extreme Output [EO] |
| Power Consumption: |
[HO] 36 Watt [EO] 45 Watt |
| Panel Thickness: |
11mm [0.43"] |
| Light Colour Options: |
3000K [WW] Warm 4100K [NW] Neutral 5800K [DW] Daylight |
| Light Output
: (IES available) |
High Output [HO] [WW] - 3,172 Lm [NW] - 3,465 Lm [DW] - 3,674 Lm Extreme Output [EO] [WW] - 3,849 Lm [NW] - 4,023 Lm [DW] - 4,058 Lm |
| Outside Dimensions: | 603 x 603 x 52 mm [23.74 x 23.74 x 2.05"] |
| Dimmability:: | Internal 0~10Vdc [30~100%] |
| Operating Voltage: | 36Vdc |
| Power Supply: | Hardwired 1.11A PS Input: 90~277Vac Input Amp Load: 0.45A PF: 0.9 |
| Warranty: | 5 Year Warranty |
| IP Rating: | IP20 |
| Weight: | 7.9 Lbs [3.6Kg] |
| UL Certification : | UL E484708 |
| Listings : | UL, DLC, TUV, RoHS |
| DOWNLOADS: | |
|---|---|
| Cut Sheet: |  |

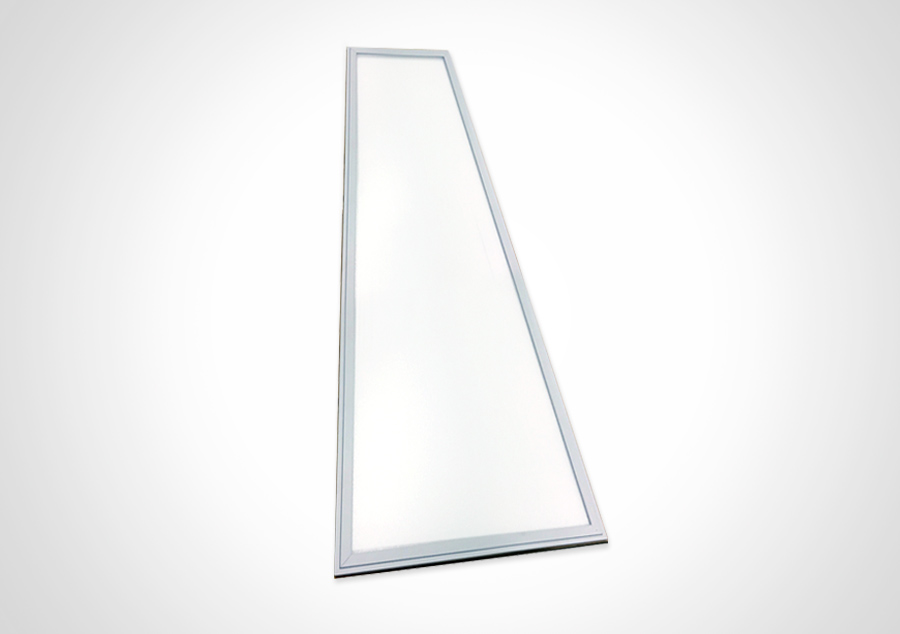

Elume 1x4Ft SlimFixture
| MODEL: | ELSF/1x4/... |
|---|---|
| Light Level: | High Output [HO] Extreme Output [EO] |
| Power Consumption: |
[HO] 36 Watt [EO] 45 Watt |
| Panel Thickness: |
11mm [0.43"] |
| Light Colour Options: |
3000K [WW] Warm 4100K [NW] Neutral 5800K [DW] Daylight |
| Light Output
: (IES available) |
High Output [HO] [WW] - 2,893Lm [NW] - 2,904 Lm [DW] - 3,203 Lm Extreme Output [EO] [WW] - 3,793 Lm [NW] - 3,881 Lm [DW] - 3,913 Lm |
| Outside Dimensions: | 298 x 1212x 52 mm [11.74 x 47.74 x 2.05"] |
| Dimmability:: | Internal 0~10Vdc [30~100%] |
| Operating Voltage: | 36Vdc |
| Power Supply: | Hardwired 1.15A PS Input: 90~277Vac Input Amp Load: 0.45A PF: 0.9 |
| Warranty: | 5 Year Warranty |
| IP Rating: | IP20 |
| Weight: | 8.1 Lbs [3.7Kg] |
| UL Certification : | UL E484708 |
| Listings : | UL, DLC, TUV, RoHS |
| DOWNLOADS: | |
|---|---|
| Cut Sheet: | |

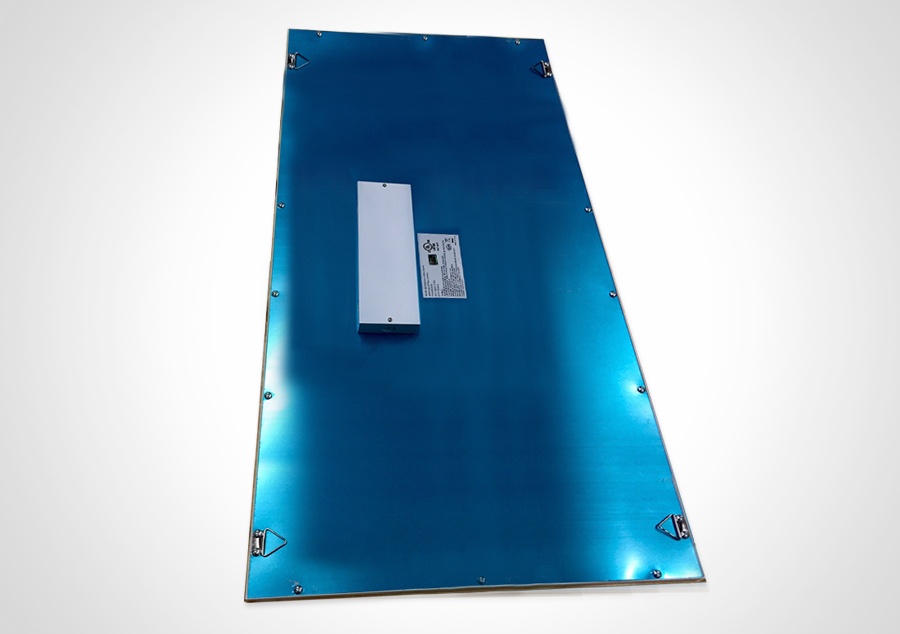

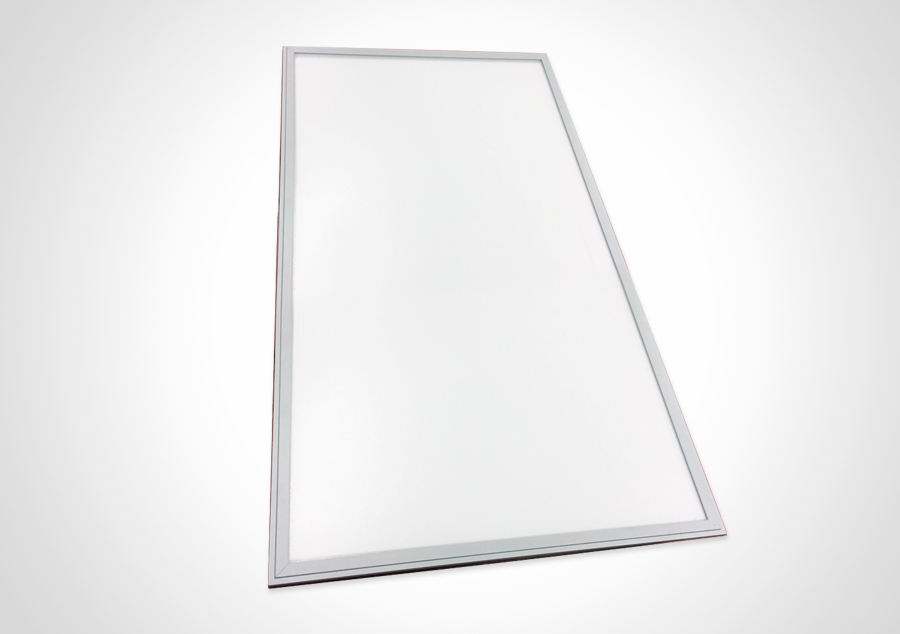

Elume 2x4Ft SlimFixture
| MODEL: | ELSF/2x4/... |
|---|---|
| Light Level: | High Output [HO] Extreme Output [EO] |
| Power Consumption: |
[HO] 62 Watt [EO] 70 Watt |
| Panel Thickness: |
11mm [0.43"] |
| Light Colour Options: |
3000K [WW] Warm 4100K [NW] Neutral 5800K [DW] Daylight |
| Light Output
: (IES available) |
High Output [HO] [WW] - 5,154 Lm [NW] - 5,785 Lm [DW] - 6,010 Lm Extreme Output [EO] [WW] - 5,518 Lm [NW] - 6,287 Lm [DW] - 6,594 Lm |
| Outside Dimensions: | 603 x 1212 x 52 mm [23.74 x 47.74 x 2.05"] |
| Dimmability:: | Internal 0~10Vdc [30~100%] |
| Operating Voltage: | 36Vdc |
| Power Supply: | Hardwired 1.65A PS Input: 90~277Vac Input Amp Load: 1.65A PF: 0.9 |
| Warranty: | 5 Year Warranty |
| IP Rating: | IP20 |
| Weight: | 15.65 Lbs [7.1Kg] |
| UL Certification : | UL E484708 |
| Listings : | UL, DLC, TUV, RoHS |
| DOWNLOADS: | |
|---|---|
| Cut Sheet: | |

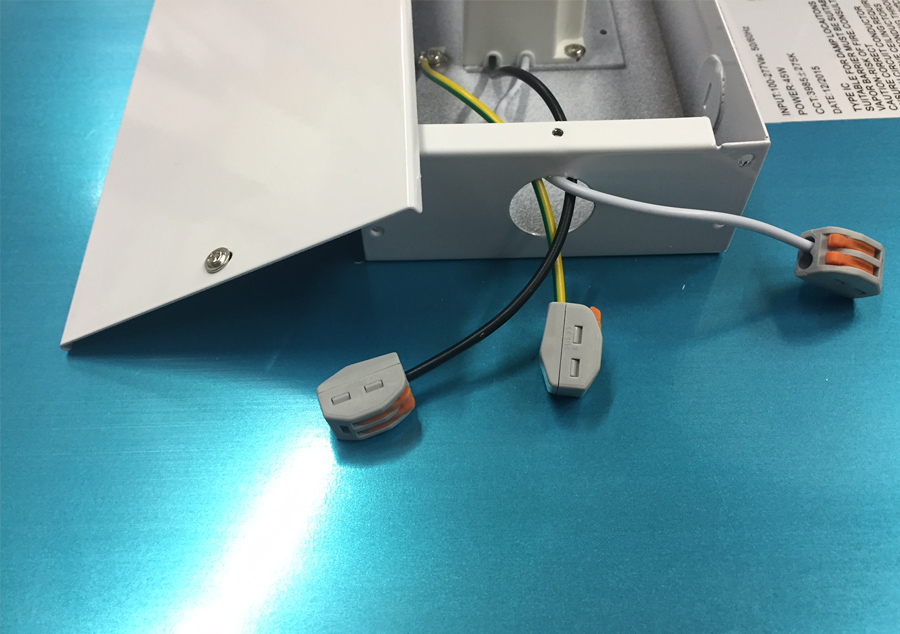

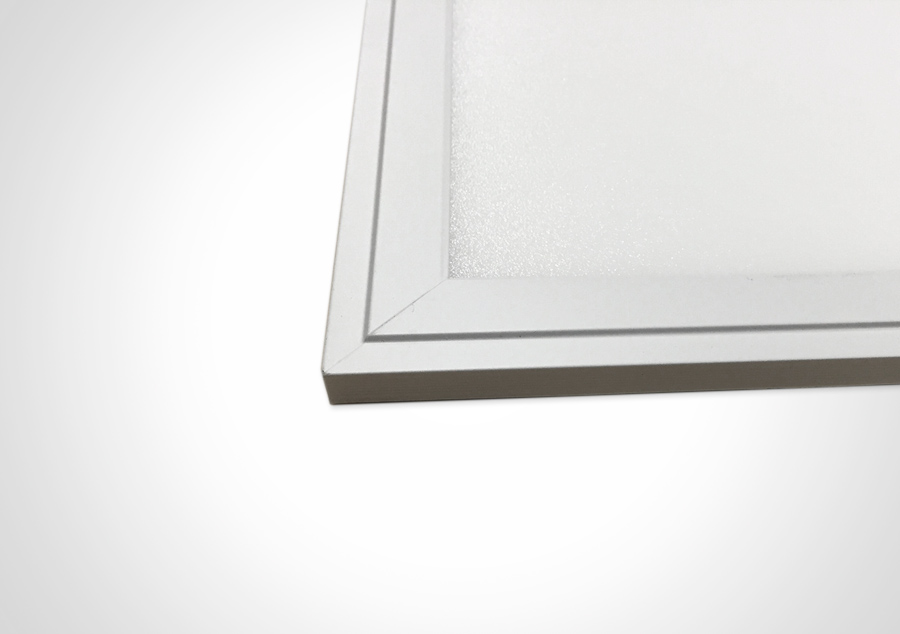

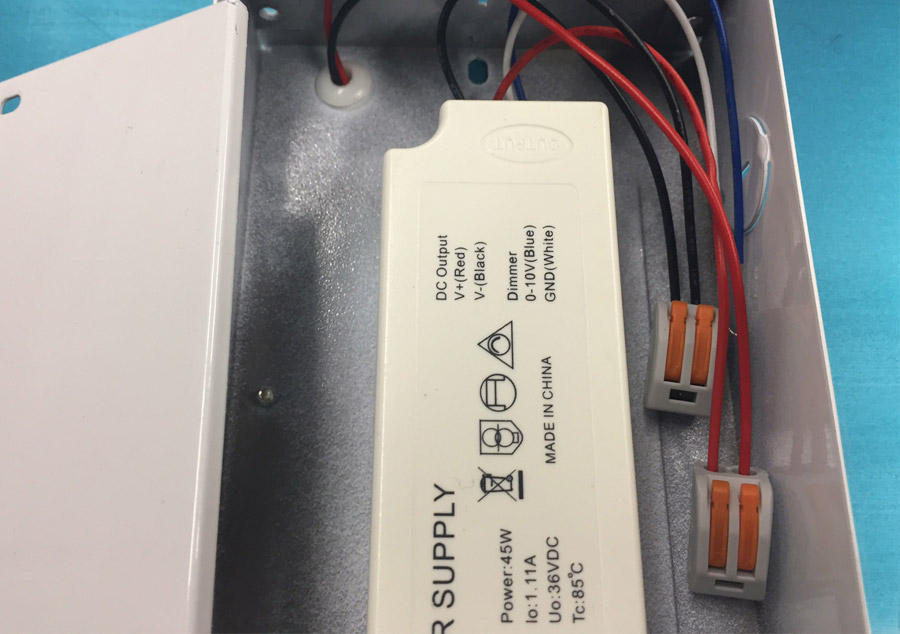

Elume LED SlimFixture Images
