Custom Elume LED Light Panel.
Our Custom Elume LED Light Panel
(Also know as LED sheet lights, LED wall panels and LED panel lights)
Our ultra thin, eLume LED Light Panels (also know as LED sheet lights, LED wall panels and LED panel lights) are designed to output a perfectly even, bright, edge to edge white or RGB illumination across the surface of the panel.
Available in Warm White, Neutral White, Daylight White or RGB our edge lit optical acrylic sheets are custom manufactured specific to the dimensions and/or shapes that your project requires ensuring the most vibrant and uniform output optimized for backlighting your translucent material.
We invite you to contact us to discuss your project's LED Light Panel requirements with one of our knowledgeable design associates.Download LED Light Panel Specification Guide
Elume LED Light Panel - Attributes
Versatility
Illuminate any translucent material to produce bright, uniform backlit and vibrant, sustainable architectural features or illuminated graphics and signage.
Customizability
Every eLume LED Light Panel is custom manufactured to the dimensions/shape, light level and kelvin temperature or RGB output to each client's specific project's requirements.
Illumination & Dimmability
With multiple fully dimmable output level options and the ability to embedd LEDs along 1, 2, 3 or all 4 edges of the acrylic, our panels are fabricated to the ideal light level required for your backlit application.
Precision Manufacturing
Meticulous fabrication process coupled with stringent quality control measures and UL safety certification ensures your eLume LED light panel arrives as expected and outperforms your expectations throughout the LED panel's longevity.
Resiliency
With their solid-state circuitry LEDs embedded in a light distribution matrix engraved, optical acrylic sheet, our eLume LED panels are water resistant, impervious to vibration and impact resilient.
Design Assistance
From concept to implementation, architects to end users, our knowledgeable design consultants and technicians offer assistance throughout the project to meet your functional requirements and achieve your aesthetic lighting objective.
Elume LED Light Panel - Light Output Colour Options
Elume LED Light Panel - LED Embedded Side's Options
LEDs Embedded Along 1, 2 or 4 Edges
To ensure the ideal output specifications for your project each LED light Panel is custom fabricated with the option of embedding LEDs along 1 edge, 2 opposing edges or along all 4 edges.
Customized Light Guide Matrix
Each LED Light Panel's light distribution grid matrix is optimized by Elumanation's proprietary algorithm to ensure maximum uniformity across each light panel's surface.
LEDs embedded along ONE edge.
To eliminate the slight drop off associated with larger panels and LEDs embedded along ONE edge we typically only recommend light panels with LEDs embedded along ONE edge for panels 14 inches (355 mm) or less in width to ensure uniform illumination.
PLEASE NOTE: LEDs shown in the image are for demonstration purposes only and are not visible on the final product.
LEDs embedded along TWO edges.
For larger light panels, LEDs embedded along TWO opposing edges coupled with Elumanation's proprietary light guide distribution grid optimization algorithm specific to every Elume LED Light Panel ensures maximum uniformity with superior illumination levels.
PLEASE NOTE: LEDs shown in the image are for demonstration purposes only and are not visible on the final product.
LEDs embedded along ALL FOUR edges.
For larger panels square or near square in shape, LEDs embedded along ALL FOUR edges coupled with our proprietary light guide distribution grid optimization algorithm specific to every Elume LED light panel ensures maximum uniformity with superior illumination levels.
PLEASE NOTE: LEDs shown in the image are for demonstration purposes only and are not visible on the final product.
Standard Model Sheet Light Specifications (CUSTOM MODELS AVAILABLE)
Max-High Brightness - No Frame - ELPmh
Thin, frameless 8mm [0.31"] units with the abillity to be cut in various shapes combined with the option of extending the light matrix grid to the non LED edges without a front masking tape to minimize the appearance of butting multiple units ideal for unique shapes, seamless multiple panel arrangements or controllable RGB.
| MODEL: | ELPmh |
|---|---|
| Light Level: | Max-High Output |
| Frame: | No Frame |
| Thickness: | 8mm [0.31"] | RGB [0.47"] |
| Wattage: | 17 W/M [5.18W/Ft] |
| Colours : | 3000/4100/5800K/RGB |
| Odd Shapes: | Yes |
| IP Rating: | IP64 (IP66 Optional) |
| Light Guide: | Grid Matrix |
| Weight: | 2.2Lbs [0.9Kg] Sq/Ft |
| Safety : | UL Certification |
| DOWNLOADS: | |
|---|---|
| Cut Sheet: |  |
| Edge Profile: | |
| Mounting: | |
| Dimming: | |
| Power Supply Options: | |

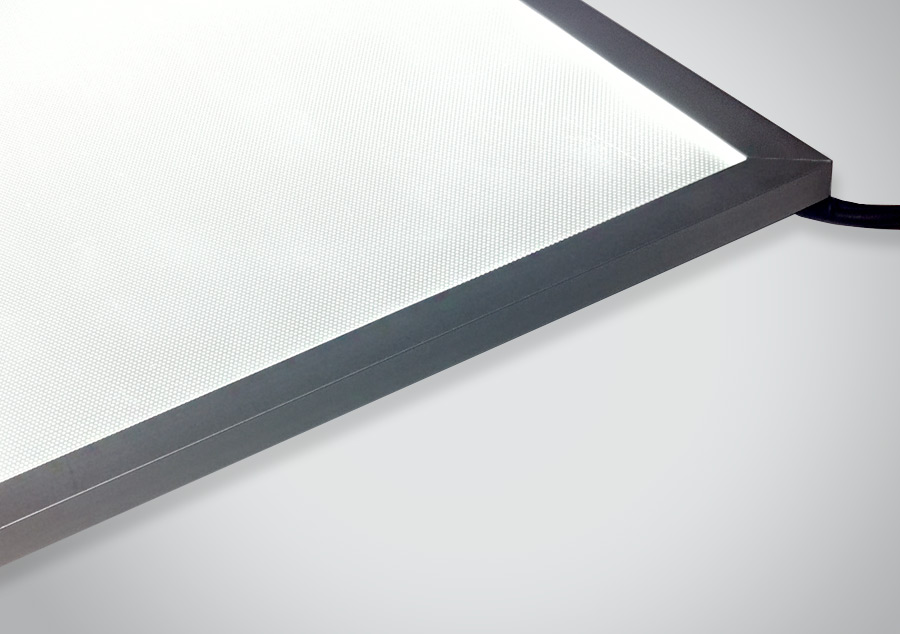

Max-High Brightness - Framed - ELsf-37mh
Thin, right angled, 8mm [0.31"] framed units and perimeter embedded LEDs edge lighting 3mm [0.12"] optical acrylic ensures lightweight luminaires coupled with the further uniformity of a tight dot matrix pattern ideal for backlighting graphics and signage.
| MODEL: | ELsf-37mh |
|---|---|
| Light Level: | Max-High Output |
| Frame: | 0.39" Border Frame |
| Thickness: | 8mm [0.31"] |
| Wattage: | 17 W/M [5.18W/Ft] |
| Colours : | 3000/4100/5800K |
| Odd Shapes: | No |
| IP Rating: | IP40 |
| Light Guide: | Dot Matrix |
| Weight: | 1.1Lbs [0.5Kg] Sq/Ft |
| Safety : | UL Certification |
| DOWNLOADS: | |
|---|---|
| Cut Sheet: | |
| Edge Profile: | |
| Mounting: | |
| Dimming: | |
| Power Supply Options: | |
Extreme Brightness - Framed - ELsf-32e
Thin, right angled, 10 mm [0.39"] reinforced framed units and perimeter embedded extreme output LEDs edge lighting 4mm [0.16"] optical acrylic ensures lightweight luminaires of the highest industry output with the added benefit of the frames rigidity ideal for larger scale single units or achieving maximum illumination levels.
| MODEL: | ELsf-32e |
|---|---|
| Light Level: | Extreme Output |
| Frame: | 0.5" Border Frame |
| Thickness: | 10mm [0.39"] |
| Wattage: | 25 W/M [7.62W/Ft] |
| Colours : | 3000/4100/5800K |
| Odd Shapes: | No |
| IP Rating: | IP40 |
| Light Guide: | Grid Matrix |
| Weight: | 1.3Lbs [0.59Kg] Sq/Ft |
| Safety : | UL Certification |
| DOWNLOADS: | |
|---|---|
| Cut Sheet: |
|
| Edge Profile: | |
| Mounting: | |
| Dimming: | |
| Power Supply Options: | |
