Custom Elume RGB LED Light Panel.
Our Custom Elume RGB LED Light Panel
Available in framed or non-framed models our ultra thin, Elume RGB LED Light Panels are designed to output a perfectly even, bright, edge to edge, static colour or colour effect illumination across the surface of the panel by utilizing a selected blend of Red, Green and/or Blue to achive the specific hue you wish to output.
With an addressable DMX colour output easily adjusted to suit your project's requirements, mood, function or aesthetic preference, our edge lit, optical acrylic sheets are custom manufactured specific to the dimensions and/or shapes that your project requires ensuring the most vibrant and uniform output optimized for backlighting your translucent material in the colour or colour effect you require.
We invite you to contact us to discuss your project's colour changing LED Light Panel requirements with one of our knowledgeable design associates.Download RGB Light Panel Specification Guide
Elume Colour Changing RGB LED Light Panel - Attributes
Versatility
Illuminate any translucent material to produce bright, uniform backlit and vibrant, sustainable architectural features in any colour or colour effect you desire.
Customizability
Every Elume RGB LED Light Panel is custom manufactured to the dimensions/shape, model type and output to each client's specific project's requirements.
Illumination & Dimmability
With multiple fully dimmable output level options and the ability to embedd RGB LEDs along 1, 2, 3 or all 4 edges of the acrylic, our panels are fabricated to the ideal light level required for your backlit application.
Precision Manufacturing
Meticulous fabrication process coupled with stringent quality control measures and UL safety certification ensures your Eume RGB LED light panel arrives as expected and outperforms your expectations throughout the LED panel's longevity.
Resiliency
With their solid-state circuitry LEDs embedded in a light distribution matrix engraved, optical acrylic sheet, our eLume LED panels are water resistant, impervious to vibration and impact resilient.
Design Assistance
From concept to implementation, architects to end users, our knowledgeable design consultants and technicians offer assistance throughout the project to meet your functional requirements and achieve your aesthetic lighting objective.
Elume RGB LED Light Panel - Light Output Colour Options
Elume RGB LED Light Panel - RGB LED Embedded Side's Options
RGB LEDs Embedded Along 1, 2 or 4 Edges
To ensure the ideal output specifications for your project each LED light Panel is custom fabricated with the option of embedding LEDs along 1 edge, 2 opposing edges or along all 4 edges.
Customized Light Guide Matrix
Each LED Light Panel's light distribution grid matrix is optimized by Elumanation's proprietary algorithm to ensure maximum uniformity across each light panel's surface.

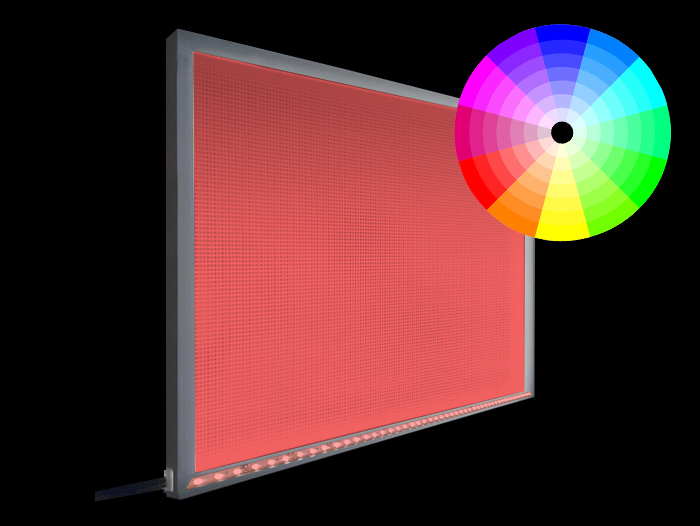

RGB LEDs embedded along ONE edge.
To eliminate the slight drop off associated with larger panels and LEDs embedded along ONE edge we typically only recommend light panels with LEDs embedded along ONE edge for panels 14 inches (355 mm) or less in width to ensure uniform illumination.
PLEASE NOTE: LEDs shown in the image are for demonstration purposes only and are not visible on the final product.

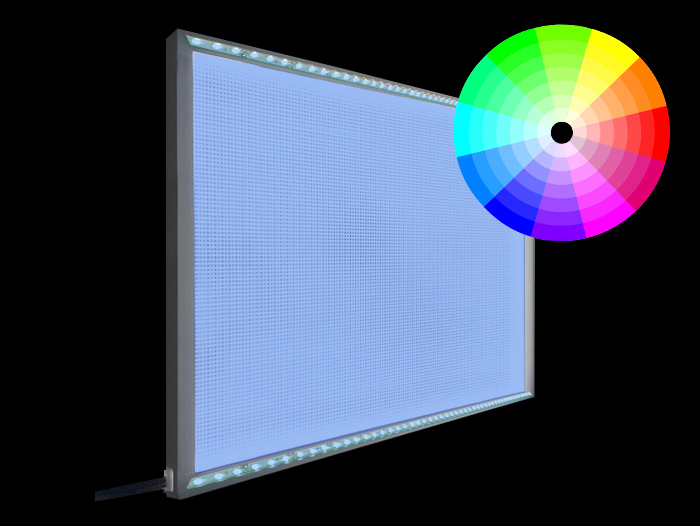

RGB LEDs embedded along TWO edges.
For larger light panels, LEDs embedded along TWO opposing edges coupled with Elumanation's proprietary light guide distribution grid optimization algorithm specific to every Elume LED Light Panel ensures maximum uniformity with superior illumination levels.
PLEASE NOTE: LEDs shown in the image are for demonstration purposes only and are not visible on the final product.

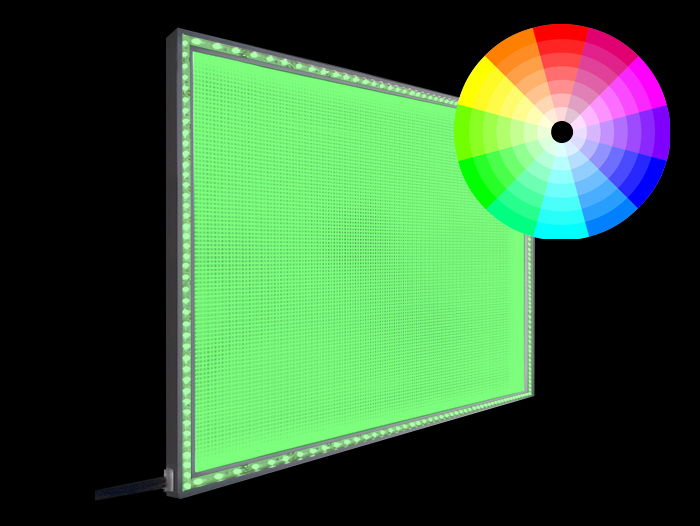

RGB LEDs embedded along ALL FOUR edges.
For larger panels square or near square in shape, LEDs embedded along ALL FOUR edges coupled with our proprietary light guide distribution grid optimization algorithm specific to every Elume LED light panel ensures maximum uniformity with superior illumination levels.
PLEASE NOTE: LEDs shown in the image are for demonstration purposes only and are not visible on the final product.
Non-Framed Model (ELP-RGB) VS Framed Model (ELP-SF32-RGB)

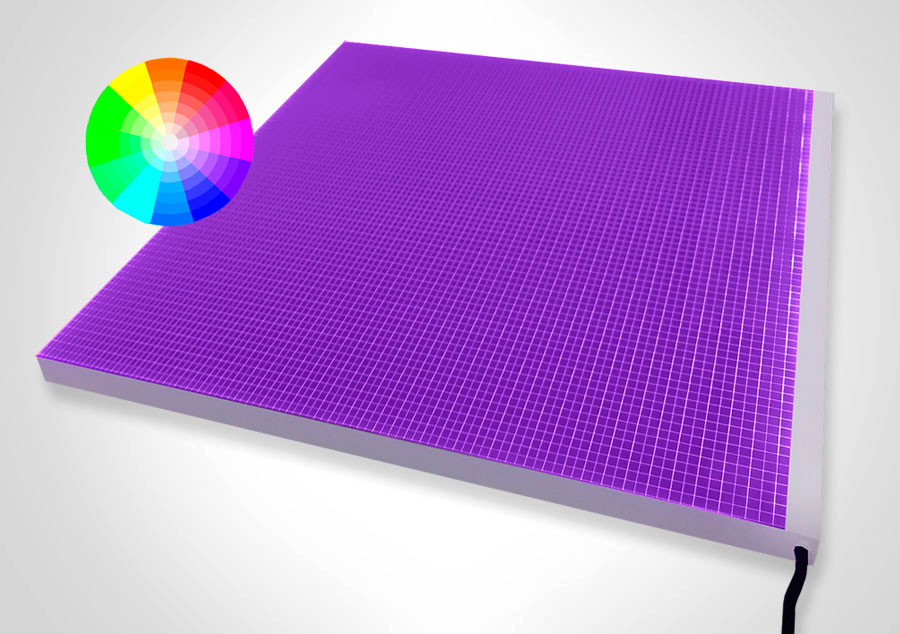

Non-Framed RGB Panel | Model : ELP-RGB
Our custom non-framed RGB LED Light Panel is reccomended over our SF32 framed model only when the application requires odd shapes, zero air space between the
panel and the substrate that is to be backlit, water resistance or when a large surface
area requires multiple panels butt together with minimal butt lines as we are able to
fabricate our non-framed panels with the light distribution right to the non LED edges.
• MINIMAL BUTT LINES
• ODD SHAPES
• ZERO AIR SPACE REQUIRED (Ideal for backlit stone bars/countertops)
• WATER RESISTANT (Additional option)
DETAILED NON-FRAMED RGB PANEL SPECIFICATIONS BELOW
...

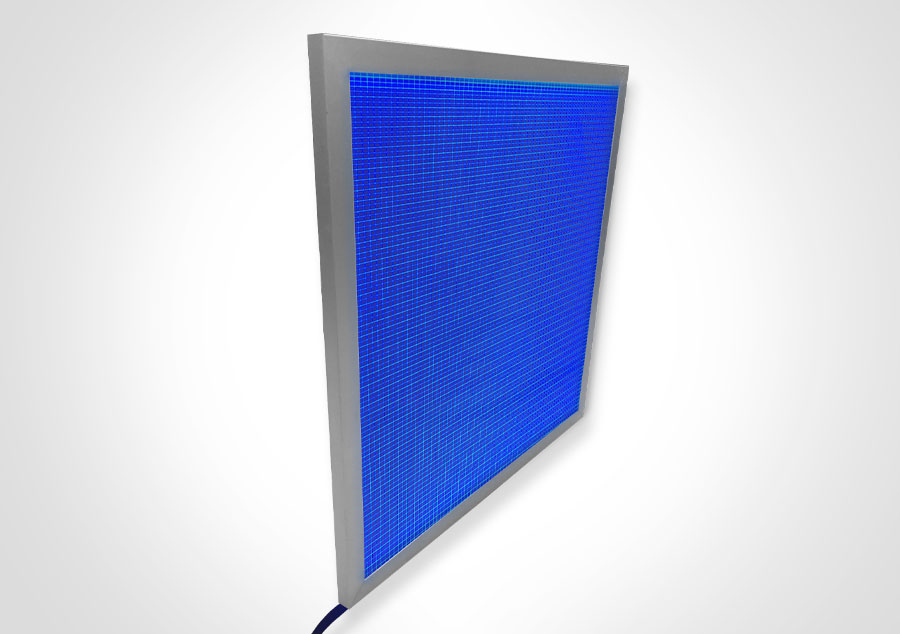

Framed RGB Panel | Model : ELP-SF32-RGB (RECOMMENDED)
Our custom SF32 framed RGB LED Light Panel is recommended over our non-framed model in all cases that do not require the unique benefits of our non-framed LED Light Panel. Our SF32 framed RGB LED Light Panel also has the added benefits of additional structural rigidity, enhanced thermal management, lighter weight than our non-framed model and a more economical cost over our non-framed model.
• ADDITIONAL STRUCTURAL RIGIDITY
• LIGHT WEIGHT (Lighter than non-framed model)
• ENHANCED THEMRAL MANAGEMENT
• MORE ECONOMICAL (Compared to non-framed model)
DETAILED FRAMED RGB PANEL SPECIFICATIONS BELOW
...
Specific Model Specifications & Downloads

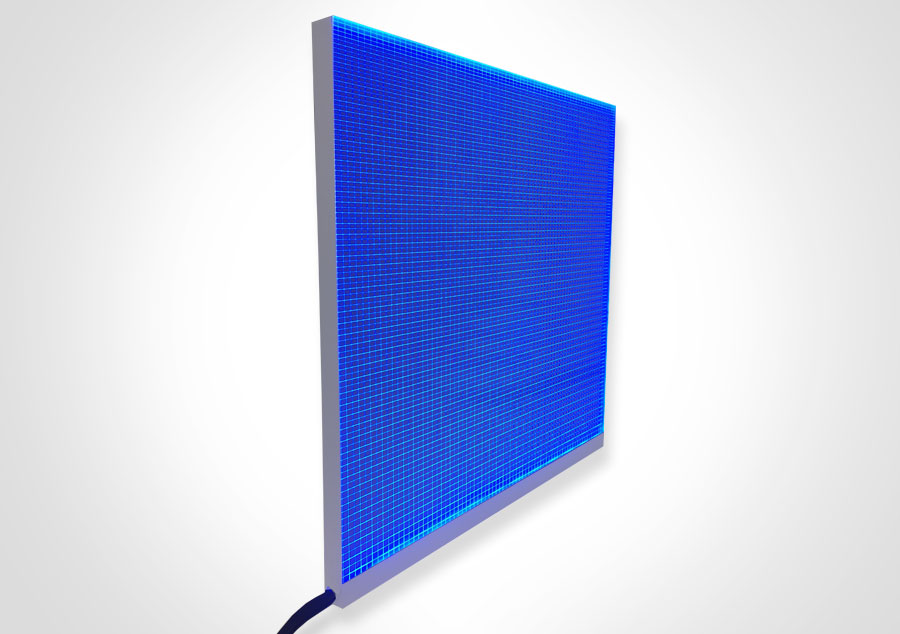

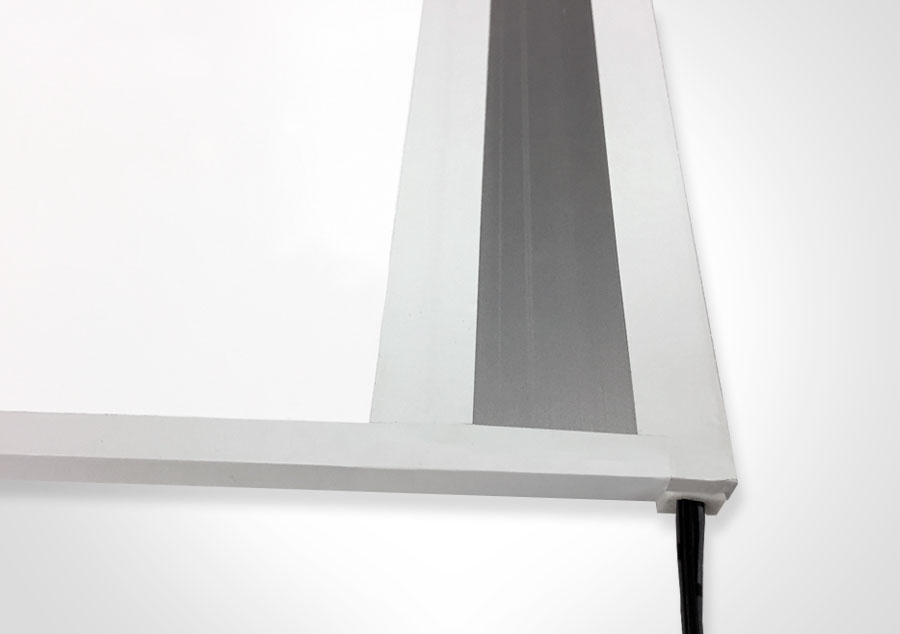

Elume RGB LED Light Panel | Non-Framed - MODEL : ELP-RGB

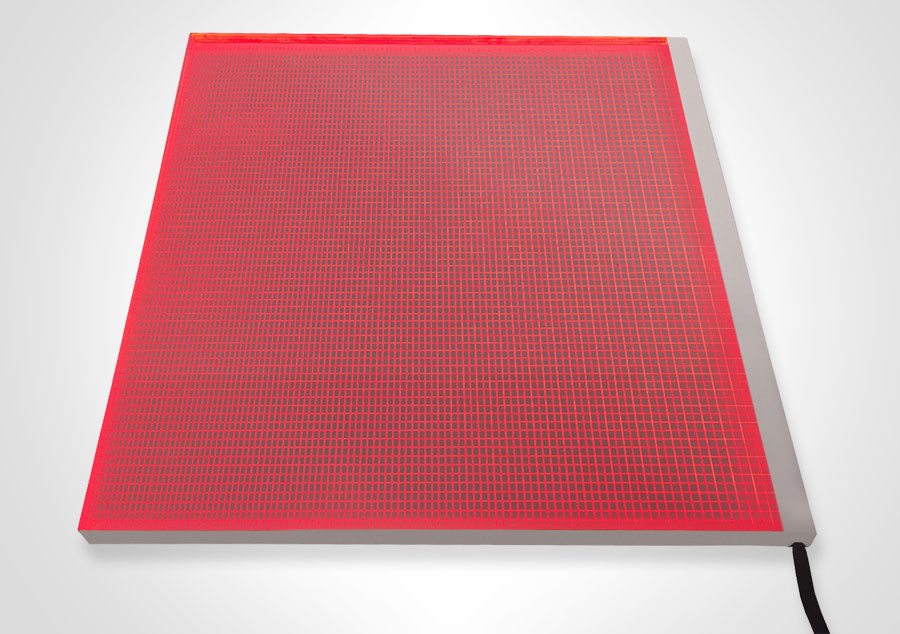

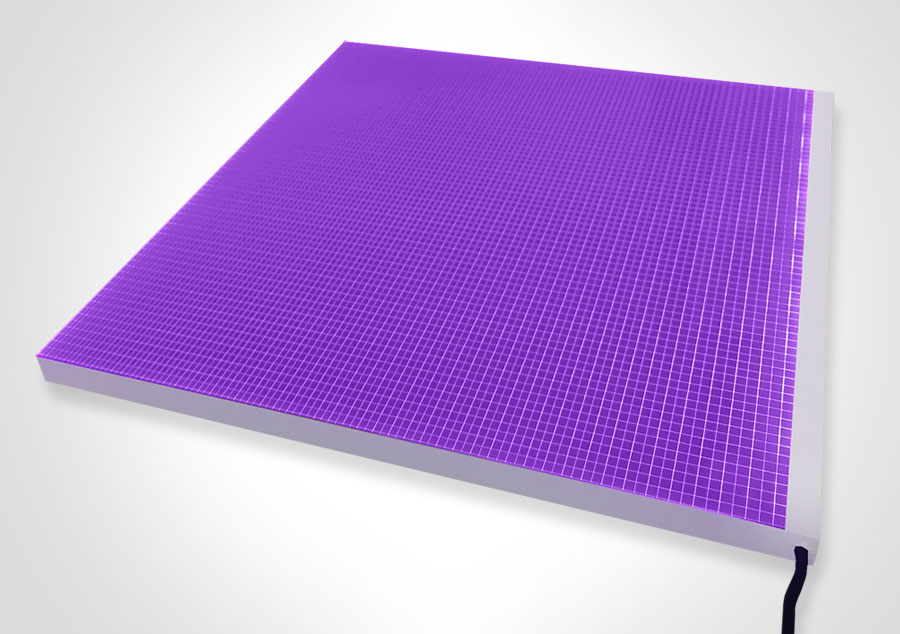

Non-Framed RGB LED Light Panel - Model: ELP-RGB
Thin, custom sizable, optical cast acrylic sheets with high output tier one RGB
LEDs embedded along the edge of the LED panels with an engraved light
distribution grid. This light distribution grid is optimized for each specific panel size
to ensure uniform and bright illumination over their entire surface.
With their minimal power consumption, long lifespan, uniform, bright illumination
and thin, lightweight characteristics, our Elume RGB LED Light Panels are a simple
yet dynamic, zero maintenance and sustainable option when colourfully
illuminating any translucent material.
Please contact us for any additional information, project assistance or pricing in regards to our Elume RGB LED Light Panels as specification arrangement with the appropriate hardware is quite complex and one of our Elumanation design associates would be glad to accommodate.

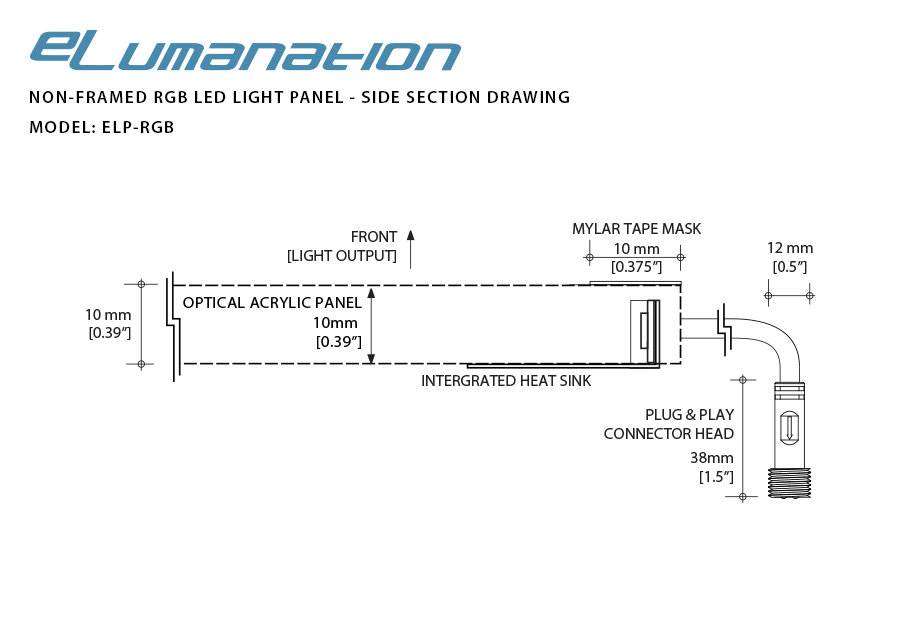

Non-Framed RGB LED Light Panel - Profile Drawing
| SPECIFICATION: | MODEL: ELP-RGB |
|---|---|
| Frame Type: | No Frame (Mylar masking tape over LEDs) |
| Light Output Level: | High or Max-High Output |
| Panel Thickness: | 10mm [0.39"] |
| Max Dimensions: *SPECIAL ORDER ONLY —> |
1270 mm [50"] x 2540 mm [100"] *1473mm [58"] x 2997mm [118"] |
| Output Level Options: Max-High Output: Extreme Output: |
17 W/M [5.18W/Ft] 25W/M [7.62W/Ft] |
| Colour Output Options: | Warm White 3000K Neutral White 4100K Daylight White 5800K |
| Operating Voltage : | 24Vdc |
| Warranty : | 3 Years |
| Electrical Safety Certification : | UL Certification |
| MODEL: ELP-RGB DOWNLOADS: | |
|---|---|
| ELP-RGB - Cut Sheet: |  |
| ELP-RGB - Power Supply Options: | |

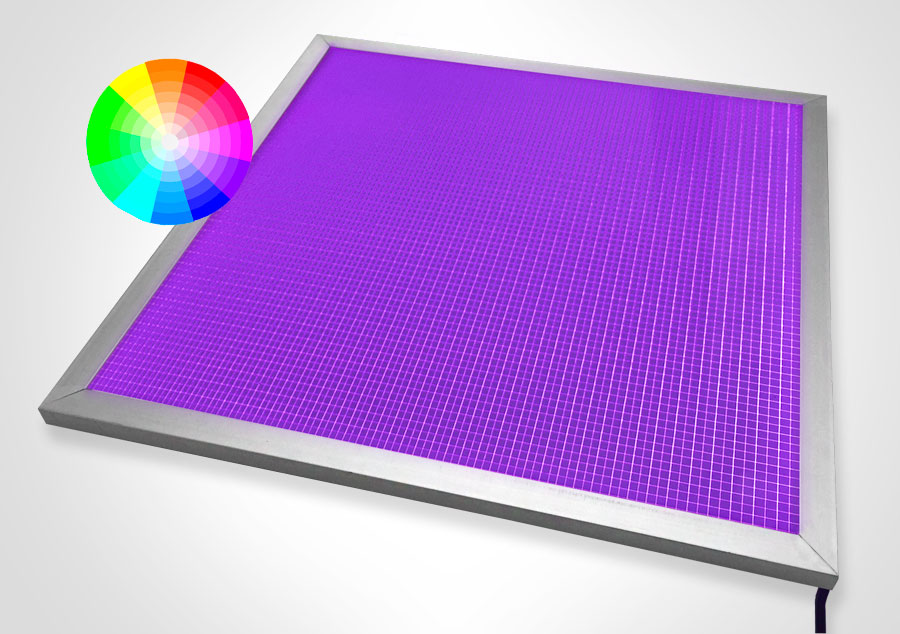

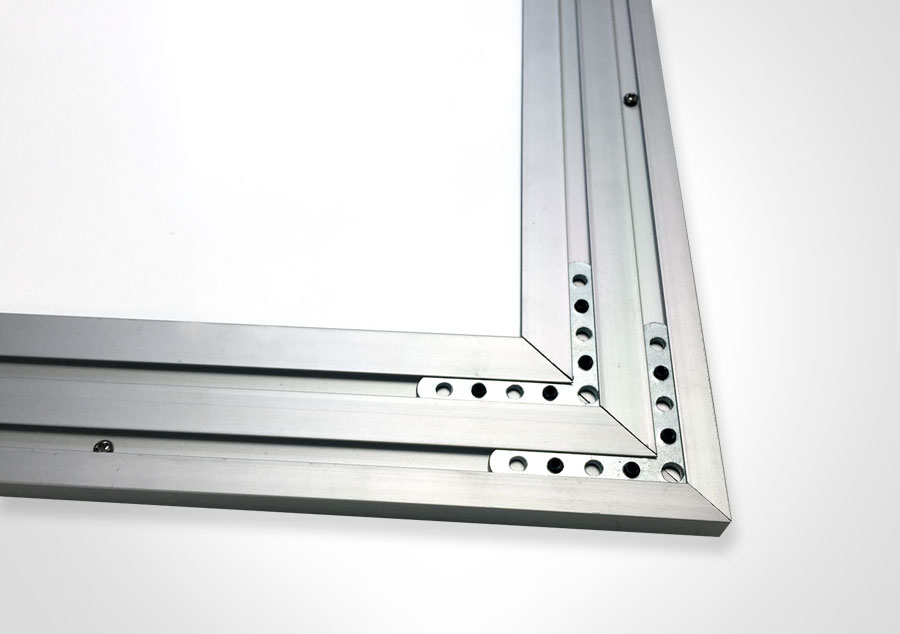

Elume RGB LED Light Panel | Framed - MODEL : ELP-SF32-RGB

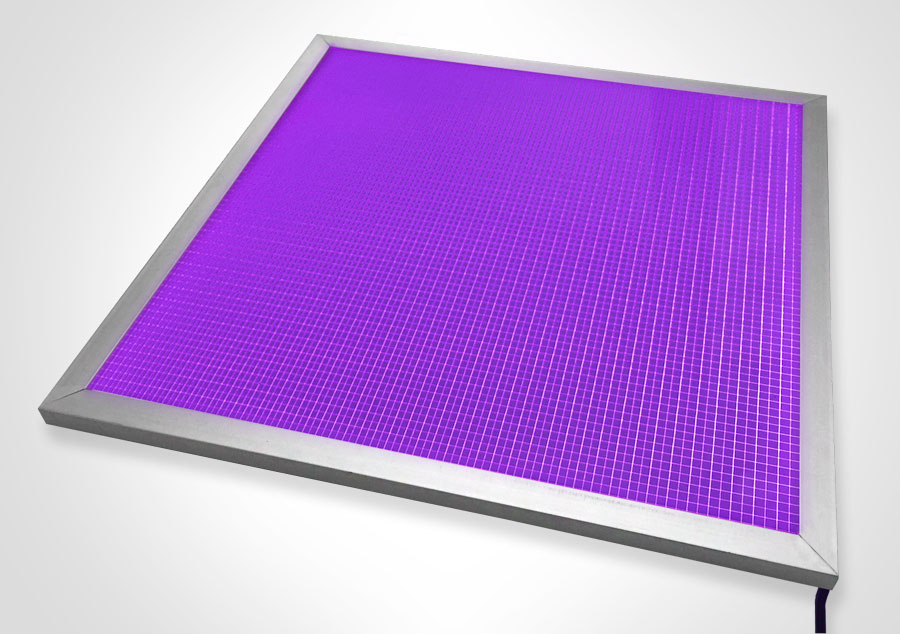

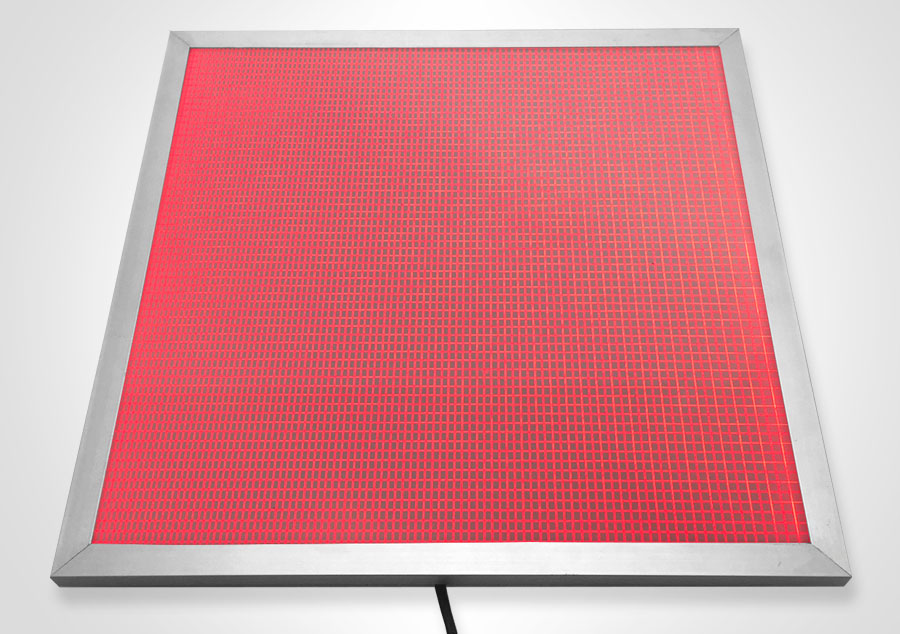

Framed RGB LED Light Panel - Model: ELP-SF32-RGB
Thin, custom sizable, optical cast acrylic sheets with high output tier one RGB
LEDs embedded along the edge of the LED panels with an engraved light
distribution grid. This light distribution grid is optimized for each specific panel size
to ensure uniform and bright illumination over their entire surface.
With their minimal power consumption, long lifespan, uniform, bright illumination
and thin, lightweight characteristics, our Elume RGB LED Light Panels are a simple
yet dynamic, zero maintenance and sustainable option when colourfully
illuminating any translucent material.
Please contact us for any additional information, project assistance or pricing in regards to our Elume RGB LED Light Panels as specification arrangement with the appropriate hardware is quite complex and one of our Elumanation design associates would be glad to accommodate.

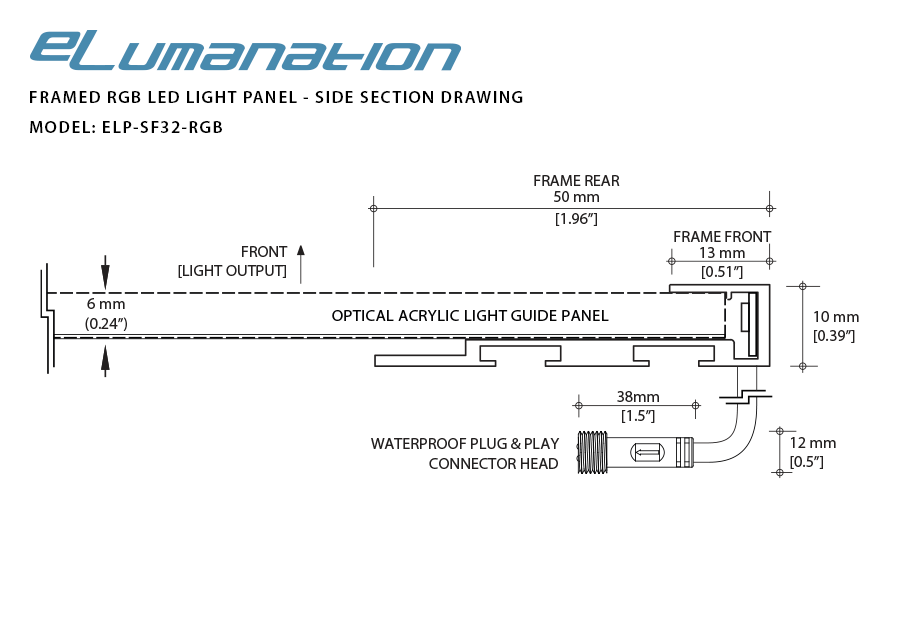

Framed RGB LED Light Panel - Profile Drawing
| SPECIFICATION: | MODEL: ELP-SF32-RGB |
|---|---|
| Frame Type: | SF32 - Double Channel Rear |
| Light Output Level: | Max-High or Extreme Output |
| Frame Thickness: | 23mm [0.9"] |
| Max Dimensions: *SPECIAL ORDER ONLY—> |
1270 mm [50"] x 2540 mm [100"] *1473mm [58"] x 2997mm [118"] |
| Output Level Options: Max-High Output: Extreme Output: |
17 W/M [5.18W/Ft] 25W/M [7.62W/Ft] |
| Colour Output Options: | Warm White 3000K Neutral White 4100K Daylight White 5800K |
| Operating Voltage : | 24Vdc |
| Warranty : | 3 Years |
| Electrical Safety Certification : | UL Certification |
| MODEL: ELP-SF32-RGB DOWNLOADS: | |
|---|---|
| ELP-SF32-RGB - Cut Sheet: | |
| ELP-SF32-RGB - Power Supply Options: | |
