Elume LED Slimbox - Custom LED Light Box.
Our Elume LED SlimBox - Custom LED Light Box
Our Elume LED light panel SlimBoxes are customizable in dimensions, frame model style and frame finish to meet with each projects specific aesthetic requirements. Our high output,
edge-lit LED light panel poster boxes are an ideal solution to illuminate POP displays, menu boards,
signage, transparencies or as a sustainable
LED backlit lightbox alternative to any traditional
fluorescent backlit system.
Please Contact Us for any additional information, project assistance or pricing in regards to our Elume SlimBox line and we will be glad to accommodate.
Alternatively as opposed to our fluorescent replacement, framed SlimBoxes we invite you to evalute our Custom LED Light Panel portfolio which may serve as a better option more suited to your application's requirements.
Download Specification Guide
Attributes
Aesthetic Design
With various model options, customizability and precision manufacturing coupled with streamlined framing that offers superior functionality our many LED SlimBox models offer an ideal solution for any backlit signage application.
Customizability
Every Elume LED SlimBox is custom manufactured to the dimensions, frame model type, light output level and frame finish/colour to each client's specifications to meet with your project's aesthetic and functional requirements.
Resiliency
With their solid-state circuitry LEDs embedded in a light distribution matrix engraved, optical acrylic sheet enclosed in the extruded aluminum SlimBox body with an additional clear optical acrylic protective lens our eLume LED SlimBox light boxes are extremely durable and impact resilient.
Design Assistance
From concept to implementation, architects to end users, our knowledgable design consultants and technichians offer assistance throughout the project to meet your functional requirements and achieve your aesthetic lighting objective.
Standard SlimBox Models - Other Models Available Upon Request

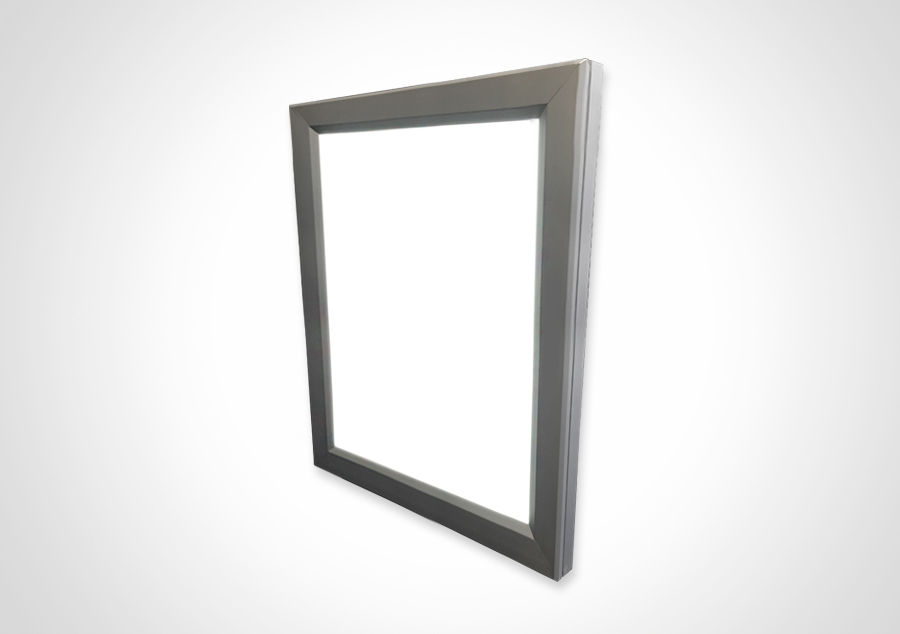

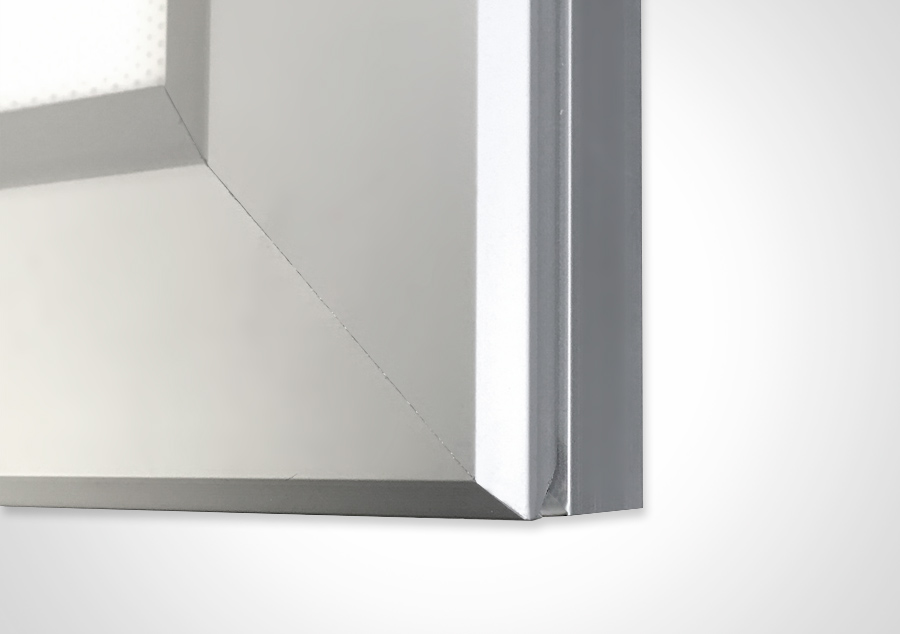

Elume SlimBox | Bezeled Snap Frame - MODEL # ELSB-2e
Bezeled Snap Frame - Model # ELSB-2e

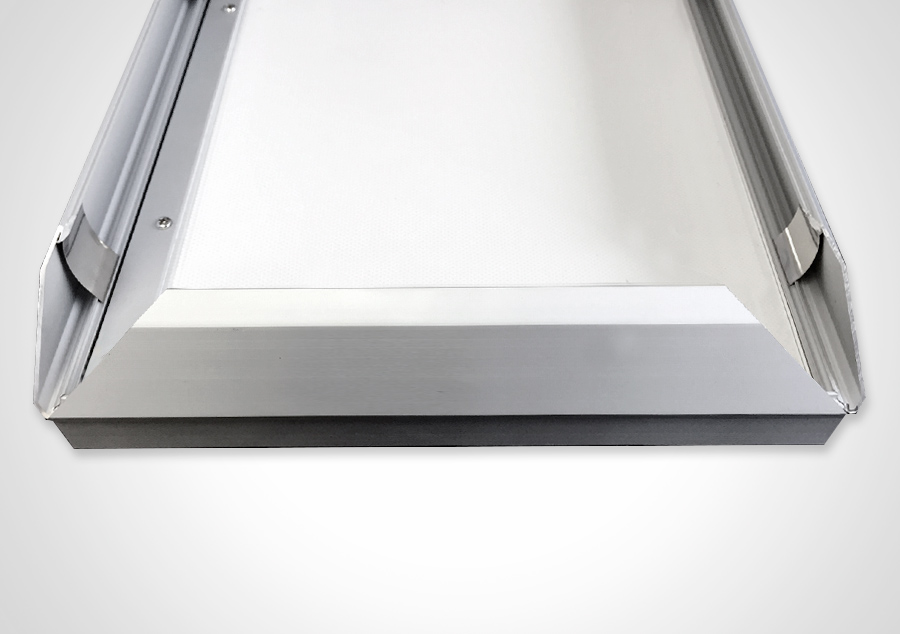

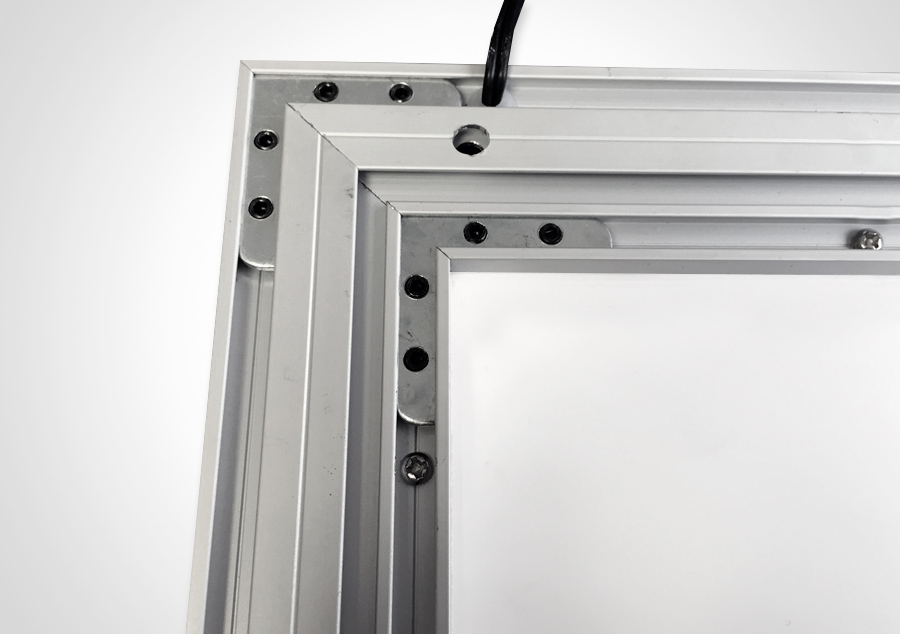

Our Elume Bezeled Snap Frame SlimBox allows for simple artwork exchange, protected by a clear acrylic lens in addition to the snap frame border ensures a tight and seemingly permanent grip on the graphic when closed.
With the precision snap open/close frame for the simple exchange of graphics and a bright uniform illumination enclosed in the bezeled snap frame custom manufactured to your required dimensions our Elume LED SlimBox will illuminate and enhance your printed graphics creating a bright and aesthetic display to catch attention while meeting your project's specific requirements.
Please contact us for any additional information, project assistance or pricing in regards to our Elume LED SlimBox models and one of our Elumanation design associates will be glad to accommodate.

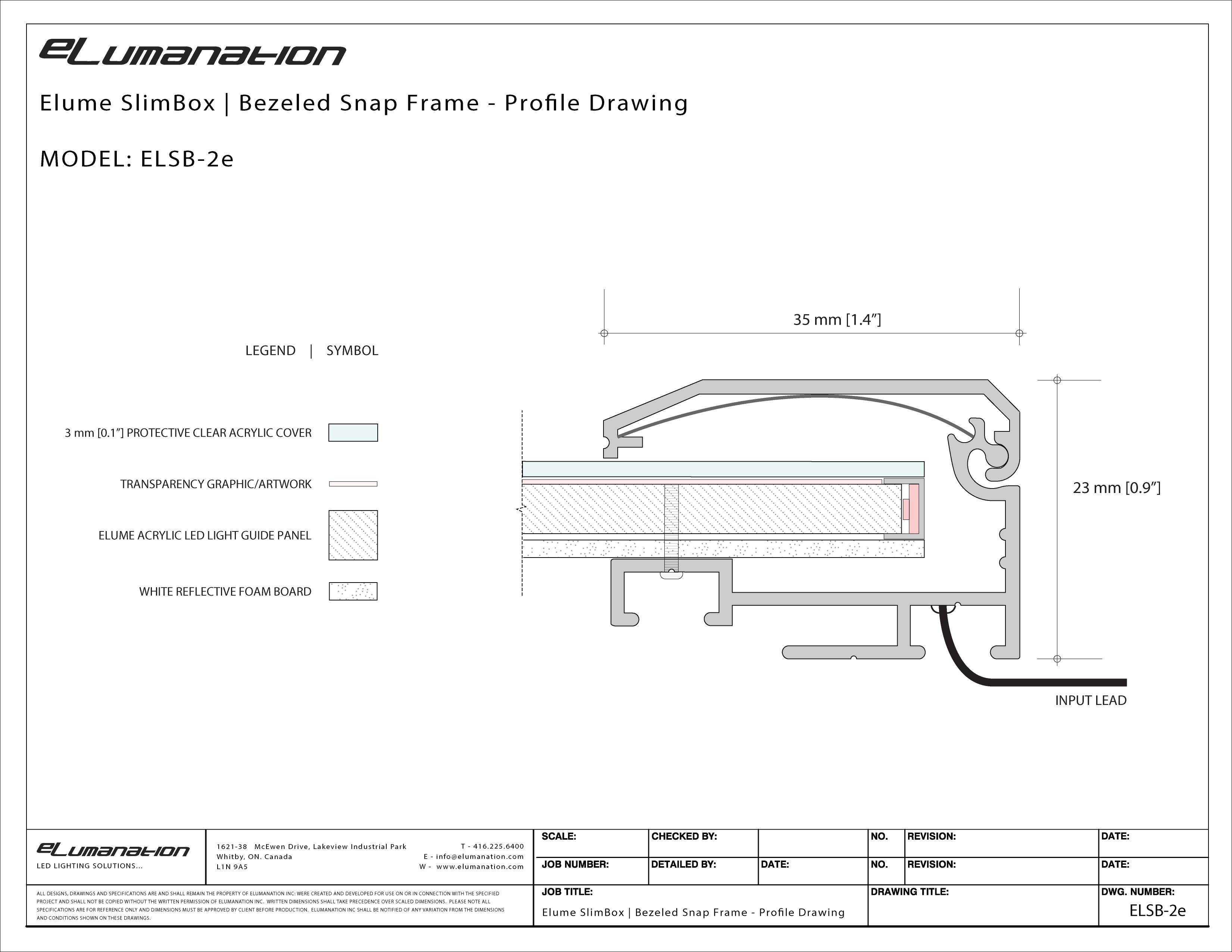

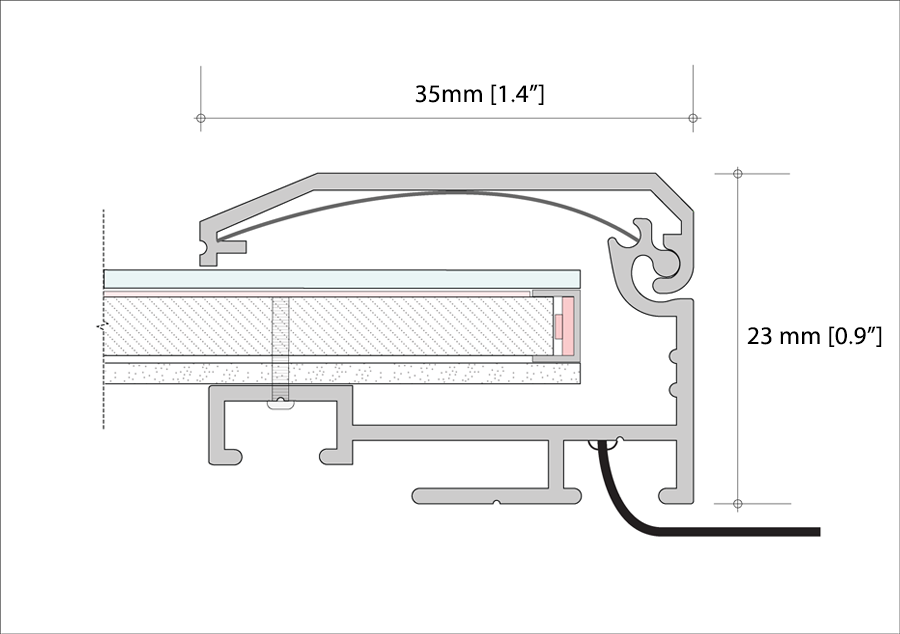

Bezeled Snap Frame - Profile Drawing
| SPECIFICATION: | MODEL# ELSB-2e |
|---|---|
| Frame Type: | Snap Open Frame |
| Light Level: | Max-High or Extreme Output |
| Frame Thickness: | 23mm [0.9"] |
| Max Dimensions: | 1270mm [50"] x 2540mm [100"] |
| Output Level Options: Max-High Output: Extreme Output: |
17 W/M [5.18W/Ft] 25W/M [7.62W/Ft] |
| Colour Output: | Daylight White 5800K |
| Operating Voltage : | 24Vdc |
| Warranty : | 3 Years |
| Safety : | UL Certification |
| MODEL# ELSB-2e DOWNLOADS: | |
|---|---|
| ELSB-2e - Cut Sheet: |  |
| ELSB-2e - Frame Profile : | |
| ELSB-2e - Power Supply Options: | |

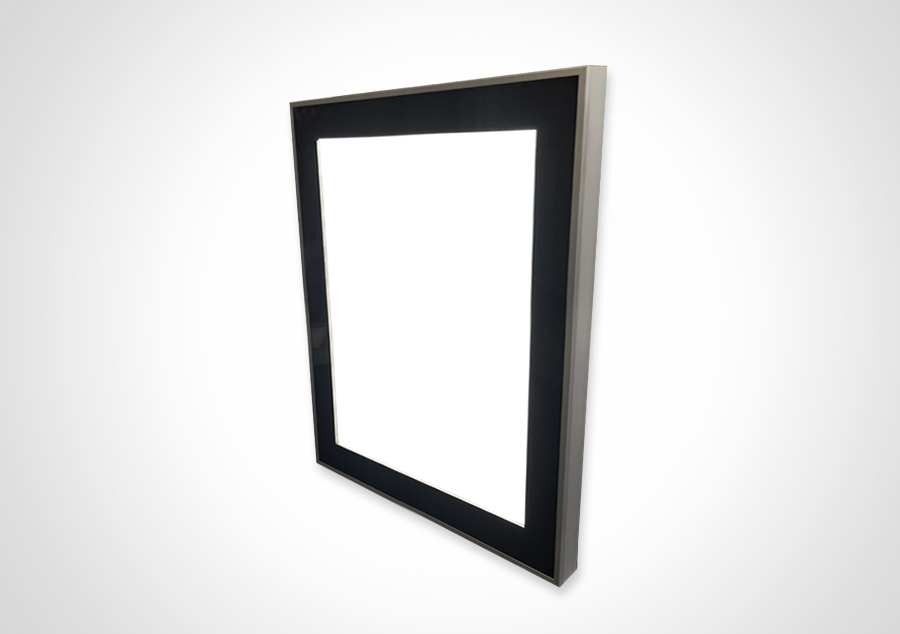

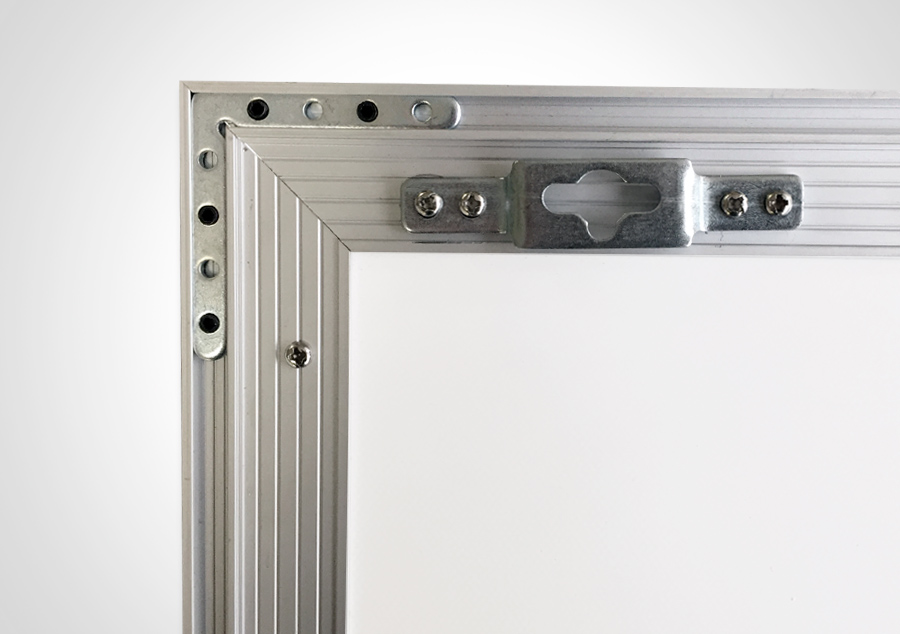

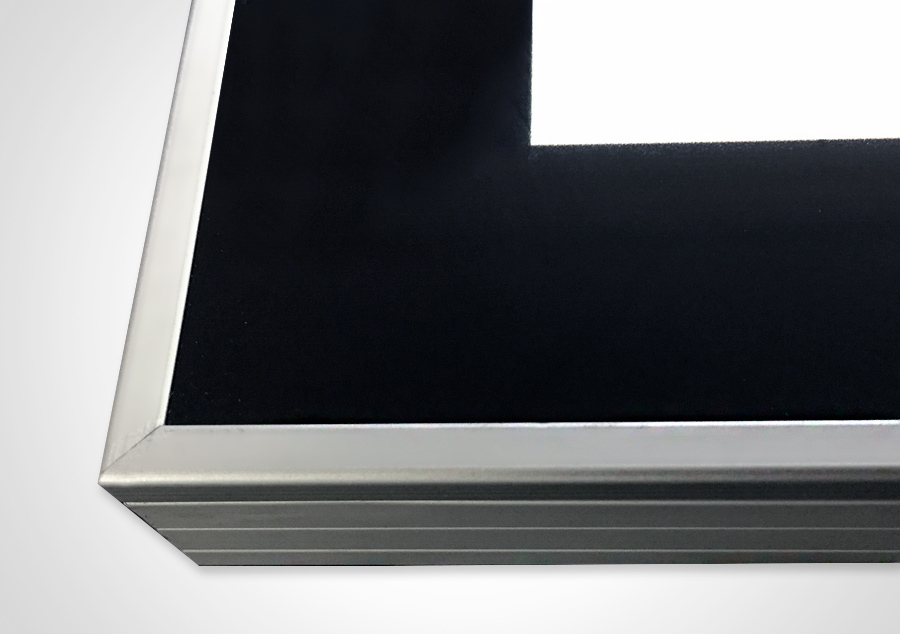

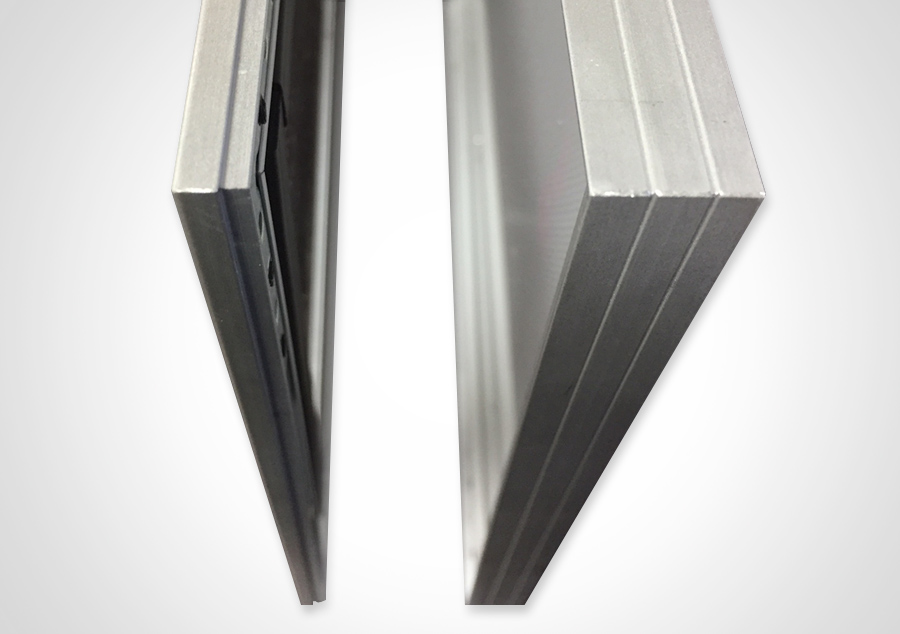

Elume SlimBox | Magnetic Lid Frame - MODEL # ELSB-12e
Magnetic Lid Frame - Model # ELSB-12e

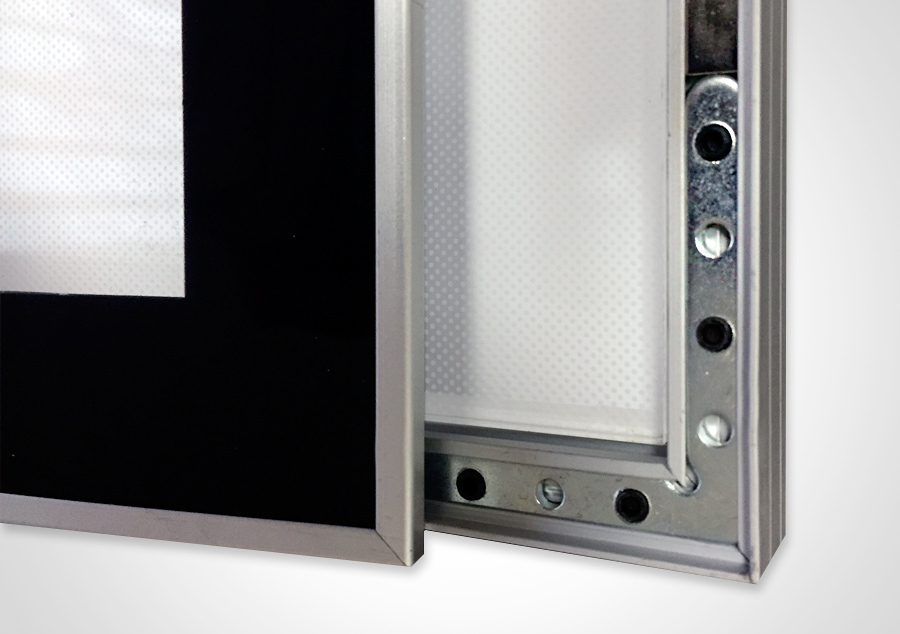

Our Elume Magnetic Lid Frame SlimBox allows for enclosed and protected artwork behind a clear acrylic lens lid with a seemingly permanent magnetic seal when closed. Internally magnets also hold the artwork in place which allows for a simple exchange of graphics if required.
With a bright uniform illumination enclosed in the magnetically sealed frame, custom manufactured to your required dimensions, our Elume Magnetic Lid LED SlimBox will illuminate and enhance your printed graphics creating a bright and protected display to catch attention while meeting your project's specific requirements.
Please contact us for any additional information, project assistance or pricing in regards to our Elume LED SlimBox models and one of our Elumanation design associates will be glad to accommodate.

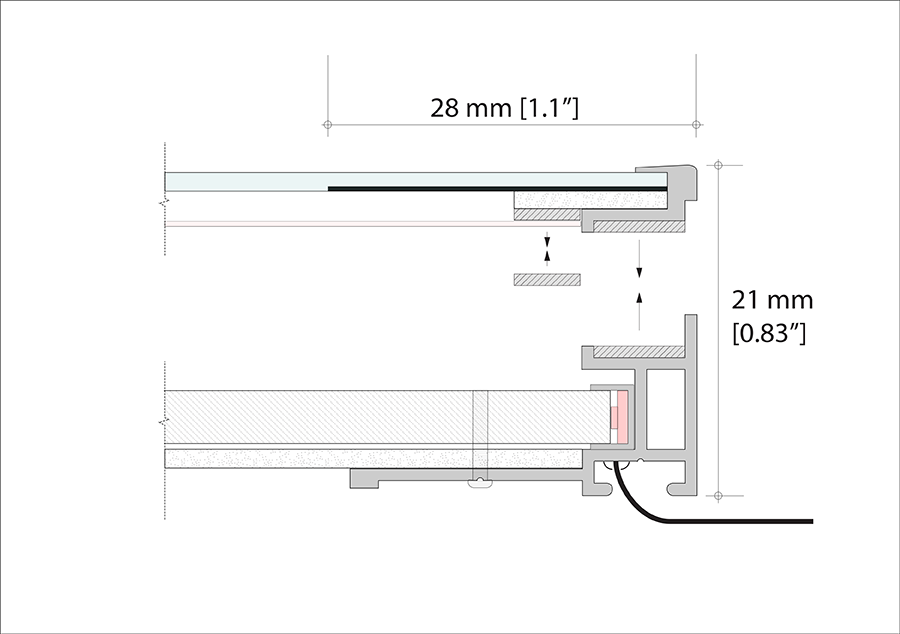

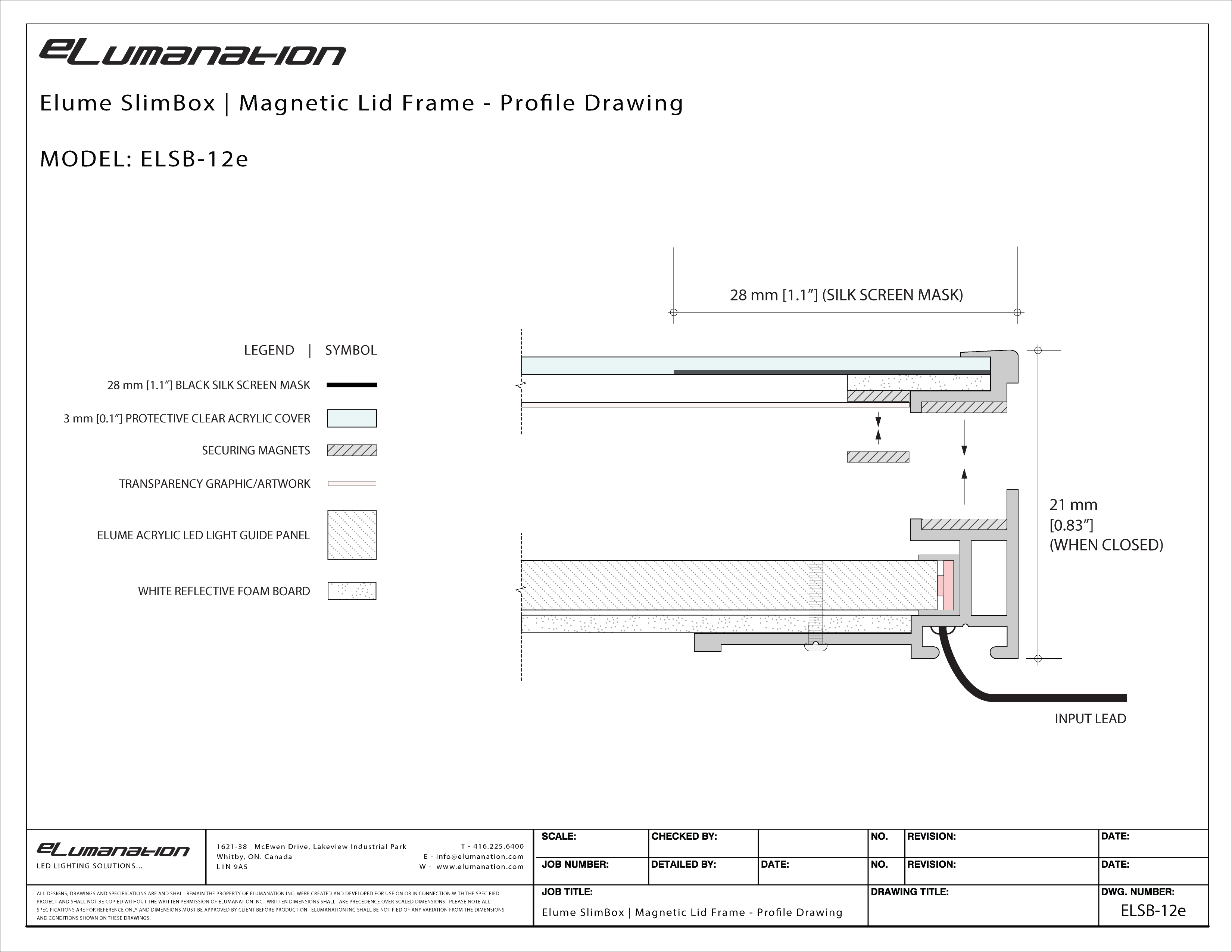

Magnetic Lid Frame - Profile Drawing & Specifications
| SPECIFICATION: | MODEL# ELSB-12e |
|---|---|
| Frame Type: | Magnetic Lid Frame |
| Light Level: | Max-High or Extreme Output |
| Frame Thickness: | 21mm [0.83"] |
| Max Dimensions: | 1270mm [50"] x 2540mm [100"] |
| Output Level Options: Max-High Output: Extreme Output: |
17 W/M [5.18W/Ft] 25W/M [7.62W/Ft] |
| Colour Output: | Daylight White 5800K |
| Operating Voltage : | 24Vdc |
| Warranty : | 3 Years |
| Safety : | UL Certification |
| MODEL# ELSB-12e DOWNLOADS: | |
|---|---|
| ELSB-12e - Cut Sheet: | |
| ELSB-12e - Frame Profile : | |
| ELSB-12e - Power Supply Options: | |
